Win a Tamiya Manta Ray 2018 Limited Edition kit!
This re-release of the Manta Ray is certainly news to celebrate for fans of Tamiya vintage 4WD buggy models! The body – inspired by the water going ray of the natural world – is still a classic nearly 30 years on from its original release in 1990; it and the large rear wing are moulded in lightweight and tough polycarbonate. Stylish dish type wheels are paired with spike tires for superlative grip on- or off-road.
A Rugged 4WD Chassis

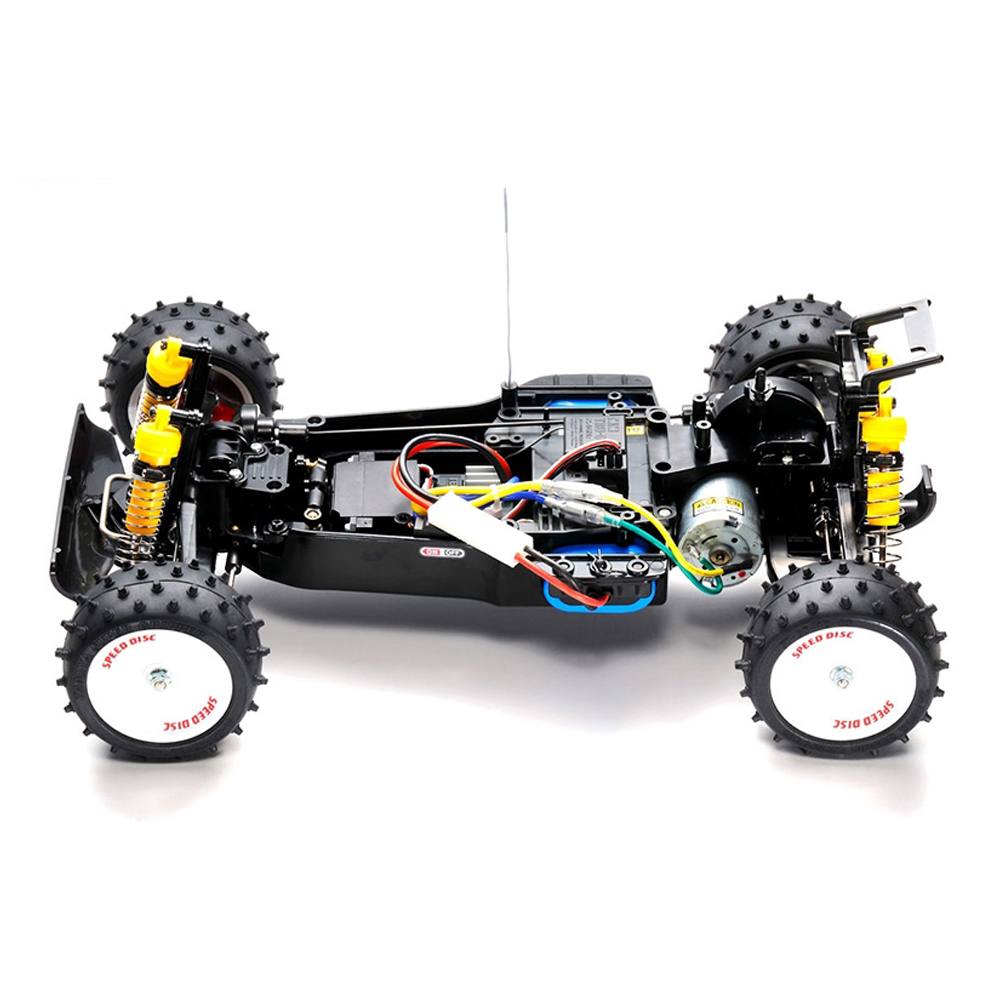

This kit’s 4WD chassis is based around a bathtub frame with honeycomb rib pattern for excellent rigidity, and which also facilitates a low centre of gravity thanks to a low attachment position for the battery pack. Its 4-wheel independent double wishbone suspension employs CVA oil dampers, while lightweight and durable hollow lower arms feature a smooth design to discourage dirt from sticking to them. Differential gears are contained in sealed gearboxes, each with a quick-access maintenance hatch. The 3-piece steering tie-rod gives sharp response, and ball adjusters allow easy altering of toe angle.
Specifications
ā
Length: 395mm, Width: 250mm, Height: 145mm ā
Wheelbase: 270mm ā
Weight (excluding R/C equipment and battery pack): 1,100g ā
Tread: 207mm (Front & Rear) ā
Bathtub-type Chassis Frame ā
Shaft-Driven 4WD ā
Front/Rear 3-Bevel Differentials ā
3-Piece Steering Tie-Rod ā
4-Wheel Double Wishbone Suspension ā
Tire Width/Diameter: 40/84mm (Front & Rear) ā
CVA Short Oil Shock Units ā
Gear Ratio=8.59:1 (with kit-included 21T pinion gear) ā
Type 540 Motor ā
Hobbywing 1060 Electronic Speed Controller
Separately Required Items
ā
2-Channel R/C Unit ā
Battery Pack & Charger
